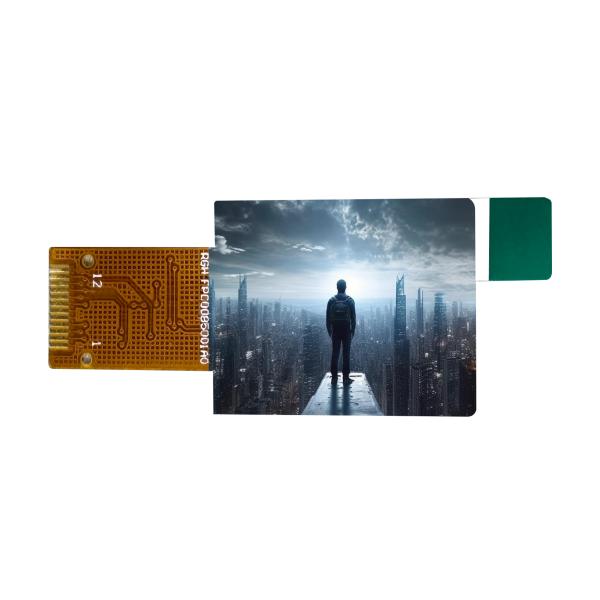

Digital TFT Touch Panel , Square LCD Display with 128x128 resolution

Brand Name : RGH

Model Number : RTP085001B

Certification : ISO9001/ISO14001

Place of Origin : Shenzhern,China

MOQ : 3PCS

Price : Negotiable

Payment Terms : L/C, T/T,Paypal

Supply Ability : 3.5kk

Delivery Time : 3-5weeks

Packaging Details : Standard Exportation Package

Size : 0.85 inches

Resolution : 128*128

Dimensions : 21.30(H)*25.75(V)*2.49(T)

Interface : SPI

Viewing Angle : ALL O'OCLOCK

Brightness : 450 cd/m2

Backlight Type : LED

Touch Screen : YES

Operating temperature : -10℃~60℃

Storage temperature : -20℃~70℃

Active area : 15.21(H)*15.21(V)

Response time : 30ms

Contrast ratio : 1200

Power consumption : 70mw

Contact Now

Digital TFT Touch Panel , Square LCD Display with 128x128 resolution

NO.	Symbo	Leve	Function
1	GND		Ground
2	LEDK		LED power cathode
3	LEDA		LED power anode
4	VDD		Power setting
5	GND		Ground
6	GND		Ground
7	D/C		command selecion pin in 4-line serial interface
8	Cs		Chip selecion pin
9	SCL		This pin is used lo beserial inlerfaceclook
10	SDA		SPlinter faceinputloutput pin
11	RESET		This signal wil reset the device and it must be applied to properly
12	GND		Ground

Digital TFT Touch Panel , Square LCD Display with 128x128 resolution

Custom LCD FAQ

1. Are you a factory or a trading company?

we are a high-tech manufacturer specializing in the R&D, production, and sales of LCD and LCM since 2011. At present, we have two factories in Dongguan.

2.What are our main products?

Providing One-stop Liquid Crystal Display and LCM Series, such as COG, COB, ) Customized LCD Series, including Touch Panels

3.What kind of certification do we have?

Our factories have passed ISO9001, 14001 and other certifications.

4. What size LCD display can you provide?

0.96 inch to 21.5 inch TFT LCD display we can provide.
